SS-CURC: AES CURC cartridge seal

Description:
SS-CURC: Replacement of AES CURC cartridge seal

Share this site:

  • Product Detail
  • Make an inquiry
SS-CURC:AES CURC cartridge seal
Structure Description:
Equivalent to AES CURC cartridge seal
Operating Limits:
Temperature：-20℃ to +210℃
Pressure： ≤2.5MPa
Speed： ≤15m/s
Materials:
Stationary Ring：Silicon Carbide, Carbon ,Ceramic
Rotary Ring：Carbon ,Silicon Carbide,TC
Secondary Seal：EPDM,Viton,Afias ,kalrez
Spring and Metal Parts：304/316

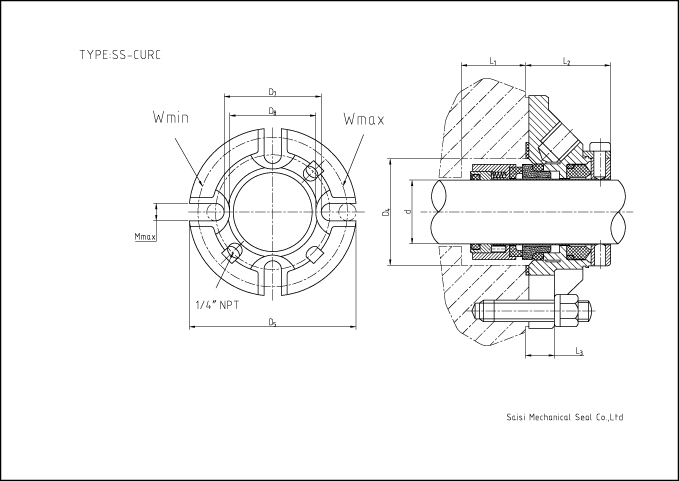

SS-CURC Dimensions(mm)
d D5 D7 D8 L3 D4(min) D4(max) W(min) W(max) M L1 L2
24 104.8 54.0  49.2 13.2 40.0  46.0  67.0  90.5 12 28.6 40.5
25 104.8 54.0  49.2 13.2 41.0  49.0  67.0  90.5 12 28.6 40.5
28 108.0  57.2 52.4 13.2 44.0  52.3 70.3 93.6 12 28.6 40.5
30 111.0  60.4 55.6 13.2 46.0  55.5 73.5 96.8 12 28.6 40.5
32 111.0  60.4 55.6 13.2 48.0  55.5 73.5 96.8 12 28.6 40.5
33 111.0  60.4 55.6 13.2 49.0  55.5 73.5 96.8 12 28.6 40.5
35 111.0  63.5 58.8 13.2 51.0  57.5 76.6 96.8 12 28.6 40.5
38 127.0  71.5 65.0  16.4 57.2 60.4 85.7 114.3 12 28.6 44.5
40 127.0  71.5 65.0  16.4 58.0  60.4 85.7 114.3 12 28.6 44.5
43 139.7 81.0  71.4 16.4 61.0  69.9 95.3 127.0  12 28.6 44.5
45 139.7 81.0  71.4 16.4 63.5 69.9 95.3 127.0  12 28.6 44.5
48 139.7 81.0  71.4 16.4 66.7 73.0  95.3 127.0  12 28.6 44.5
50 152.4 90.5 77.8 16.4 68.0  76.2 104.8 139.7 12 28.6 44.5
53 152.4 90.5 77.8 16.4 71.0  76.2 104.8 139.7 12 28.6 44.5
55 165.1 96.8 84.1 16.4 74.0  82.5 114.3 149.2 16 28.6 44.5
58 165.1 96.8 84.1 16.4 76.2 82.6 114.3 149.2 16 28.6 44.5
60 165.1 96.8 84.1 16.4 79.4 85.7 114.3 149.2 16 28.6 44.5
63 177.8 109.5 96.8 19.6 85.8 92.1 127.0  160.3 16 31.8 47.7
65 177.8 109.5 96.8 19.6 88.9 95.3 127.0  160.3 16 31.8 47.7
68 177.8 109.5 96.8 19.6 92.1 98.4 127.0  160.3 16 31.8 47.7
70 177.8 109.5 96.8 19.6 92.1 98.4 127.0  160.3 16 31.8 47.7
75 190.5 125.4 108.0  19.6 98.5 108.0  142.9 173.0  16 31.8 47.7
80 190.5 125.4 108.0  19.6 101.6 111.1 142.9 173.0  16 31.8 47.7
85 203.2 135.0  117.5 19.6 108.0  117.5 155.6 182.5 20 31.8 47.7
90 215.9 150.8 127.0  19.6 114.3 127.0  171.5 195.2 20 31.8 47.7
95 215.9 150.8 127.0  19.6 117.5 130.2 171.5 195.2 20 31.8 47.7
100 228.6 168.3 136.5 19.6 123.9 139.7 188.9 207.9 20 31.8 47.7
105 228.6 168.3 136.5 19.6 130.1 149.2 189.0  208.0  20 31.8 47.7
110 241.3 177.8 146.1 19.6 136.5 158.8 198.4 220.6 20 31.8 47.7
115 254.0  186.6 155.6 19.6 142.9 168.3 211.1 230.2 22 31.8 47.7
120 254.0  186.6 155.6 19.6 142.9 168.3 211.1 230.2 22 31.8 47.7
125 254.0  186.6 155.6 19.6 142.9 168.3 211.1 230.2 22 31.8 47.7
