SS-5610: John crane Type 5610 replacement

Description:
SS-5610: Replacement of John crane Type 5610 mechanical seal, Cartridge mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
SS-5610:John crane cartridge seal Type 5610
Structure Description
Equivalent to single John crane cartridge seal Type 5610
Single cartridge mechanical seal
Wave spring type,other type with Bushing design is also available

Operating Limits
Temperature:-50---204℃
Speed:23m/s
Pressure:20bar
Standard Size:24-140mm or 1″-5.5″

Material:
Seal Ring:Car,Sic,Ssic,TC
Secondary seal:NBR,Viton,EPDM,Kalrez
Spring and metal parts:304,316,HAST.C

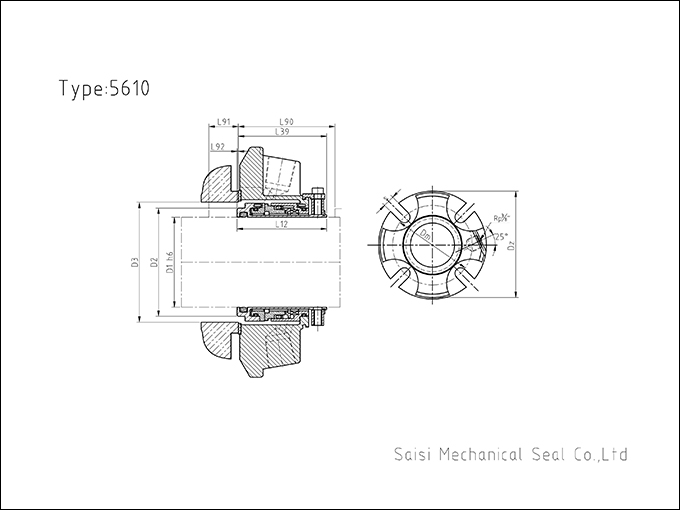

SS-5610 Dimensions(mm)
Size D2 D3Min D3Max Dz L12 L39 L90 L91 L92 Dm S
24 34.9 36.7 48.0 101.6 50.5 49.6 50.8 4.0 0.9 71.2 13.3
25 34.9 36.7 48.0 101.6 50.5 49.6 50.8 4.0 0.9 71.2 13.3
28 38.1 * 51.2 104.8 52.4 52.4 54.0 3.2 * 74.6 13.3
30 40.0 * 56.5 108.0 52.4 52.4 54.0 3.2 * 79.9 13.3
32 41.3 * 58.3 108.0 52.4 52.4 54.0 3.2 * 81.6 13.3
33 44.5 * 61.5 111.1 52.4 52.4 54.0 3.2 * 84.8 13.3
35 44.5 * 61.5 111.1 52.4 52.4 54.0 3.2 * 84.8 13.3
38 49.2 51.0 68.1 123.8 54.8 54.0 55.5 4.0 0.8 91.4 13.3
40 52.4 54.2 71.4 127.0 54.8 54.0 55.5 4.0 0.8 96.7 14.3
43 55.1 56.9 74.1 133.4 54.8 54.0 55.5 4.0 0.8 98.4 14.3
45 55.1 56.9 74.1 133.4 54.8 54.0 55.5 4.0 0.8 98.4 14.3
48 58.7 60.5 74.1 133.4 54.8 54.0 55.5 4.0 0.8 98.4 14.3
50 61.9 63.7 76.6 139.7 60.3 58.7 60.3 4.7 1.6 101.6 14.3
53 65.1 66.9 85.3 148.8 60.3 58.7 60.3 4.7 1.6 113.5 17.4
55 66.7 75.0 85.3 148.8 60.3 58.7 60.3 4.7 1.6 113.5 17.4
58 68.2 70.0 88.5 165.1 60.3 58.7 60.3 4.7 1.6 116.0 17.4
60 71.4 73.2 91.7 165.1 63.1 62.6 64.2 3.6 1.6 119.9 17.4
63 77.8 * 98.8 171.5 63.1 65.1 66.7 3.2 0.5 127.0 17.4
65 77.8 * 98.8 171.5 63.1 65.1 66.7 3.2 * 127.0 17.4
68 84.1 * 103.2 171.5 63.5 63.5 65.1 3.2 * 131.3 17.4
70 84.1 * 103.2 171.5 63.5 63.5 65.1 3.2 * 131.3 17.4
75 92.1 * 113.5 196.9 63.5 65.1 66.7 3.2 * 145.3 20.6
80 95.3 97.9 116.8 188.9 65.1 63.8 66.9 4.5 1.3 148.4 20.6
85 101.6 104.8 123.2 206.4 65.1 65.1 68.3 3.2 * 154.5 20.6
90 107.1 110.3 129.5 212.7 65.1 65.1 68.3 3.2 * 158.8 17.4
95 110.3 113.5 132.1 222.3 65.1 65.1 68.3 3.2 * 172.0 17.4
100 116.7 119.8 139.7 228.6 65.1 65.1 68.3 3.2 * 171.7 20.6
105 119.8 123.0 142.9 228.6 65.1 65.1 68.3 3.2 * 174.9 20.6
110 129.4 132.5 152.4 241.3 65.1 65.1 68.3 3.2 * 184.4 20.6
115 129.4 132.5 152.4 241.3 65.1 65.1 68.3 3.2 * 184.4 20.6
120 135.7 138.9 160.4 263.5 65.1 65.1 68.3 3.2 * 192.4 20.6
125 148.4 151.6 184.4 304.8 75.0 77.3 80.5 3.2 * 254.0 20.6
130 154.8 157.9 190.8 311.2 75.0 77.3 80.5 3.2 * 260.4 20.6
135 161.1 164.3 203.2 322.3 75.0 77.3 80.5 3.2 * 265.7 23.8
140 161.1 164.3 203.2 322.3 75.0 77.3 80.5 3.2 * 265.7 23.8
