SS-4620P: John crane Type 4620P replacement

Description:
SS-4620P: Replacement of John crane Type 4620P mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
SS-4620P:John crane double cartridge seal type 4620P
Structure Description
Equivalent to John crane double cartridge seal type 4620P
Double cartridge mechanical seal
Multiple spring,neet most industry pump standards,including ANSI/DIN punps
Operating Limits
Temperature:-50---204℃
Speed:23m/s
Pressure:20bar
Standard Size:1″-2.75″
Material:
Seal Ring:Car、Sic、Ssic、TC
Secondary seal:NBR，Viton，EPDM，Kalrez
Spring and metal parts:304，316，HAST.C

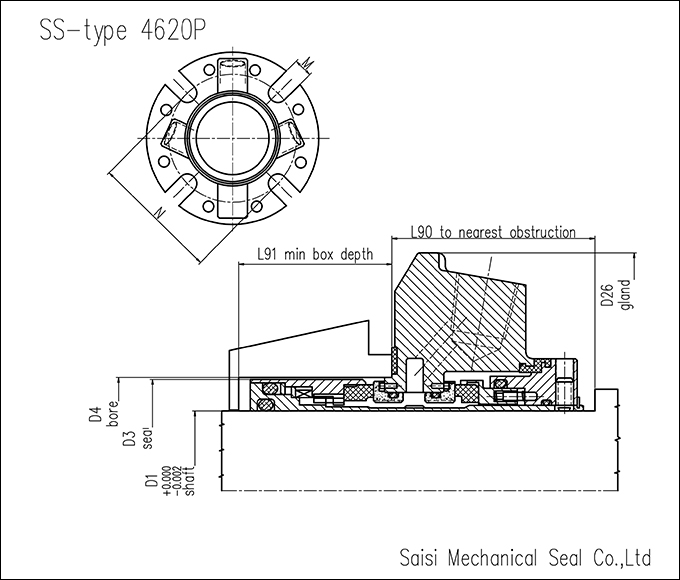

SS-4620P Dimentions(inches)
D1
Shaft Size		 D4
Box Bore
Min.    Max.		 D26 L90 L91
Min.		 N M
1.000 1.625 1.889 4.000 2.000 1.635 2.805 0.525
1.125 1.750 2.015 4.125 2.125 1.603 2.933 0.525
1.250 1.875 2.294 4.250 2.125 1.603 3.213 0.525
1.375 2.000 2.421 4.375 2.125 1.603 3.338 0.525
1.500 2.250 2.680 4.875 2.187 1.680 3.599 0.525
1.625 2.375 2.812 5.000 2.187 1.680 3.766 0.562
1.750 2.500 2.918 5.250 2.187 1.680 3.875 0.562
1.875 2.625 2.918 5.250 2.187 1.680 3.875 0.562
2.000 2.750 3.015 5.500 2.375 1.711 4.000 0.562
2.125 2.875 3.360 5.859 2.375 1.711 4.469 0.687
2.250 3.000 3.485 6.500 2.475 1.711 4.566 0.687
2.375 3.125 3.610 6.500 2.528 1.711 4.719 0.687
2.500 3.375 3.891 6.750 2.625 1.703 5.000 0.687
2.625 3.687 4.062 6.750 2.562 1.727 5.170 0.687
2.750 3.687 4.062 6.750 2.562 1.727 5.170 0.687
