SS-W04: AES seal W04,Roplan RT73,VULCAN 1688Y mechanial seal
Structure Description:
Equivalent to AES seal W04,Roplan RT73,VULCAN 1688Y mechanial seal
Operating Limits:
Temperature: -40℃ to +200℃
Pressure: ≤0.8MPa
Speed: ≤18m/s
Standard Size: 20-80mm
Materials:
Stationary Ring： Silicon Carbide, TC, Carbon
Rotary Ring： TC, Steel
Secondary Seal：NBR,EPDM,Viton
Spring and Metal Parts：304/316
Applications：Clean water,sewage water,oil and other moderately corrosive fluids.
Structure Description:
Equivalent to AES seal W04,Roplan RT73,VULCAN 1688Y mechanial seal
Operating Limits:
Temperature: -40℃ to +200℃
Pressure: ≤0.8MPa
Speed: ≤18m/s
Standard Size: 20-80mm
Materials:
Stationary Ring： Silicon Carbide, TC, Carbon
Rotary Ring： TC, Steel
Secondary Seal：NBR,EPDM,Viton
Spring and Metal Parts：304/316
Applications：Clean water,sewage water,oil and other moderately corrosive fluids.

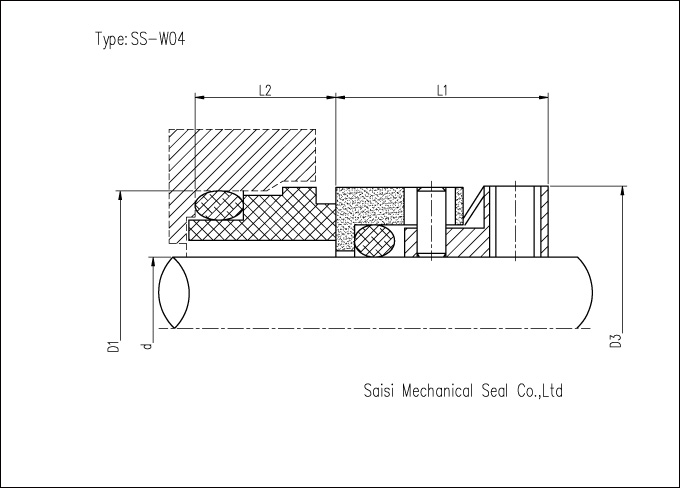

| SS-W04 Dimenstions(mm) | ||||
| d | D1 | D3 | L1 | L2 |
| 30 | 40.0 | 41.0 | 19.1 | 9.3 |
| 35 | 44.5 | 45.5 | 19.1 | 9.2 |
| 50 | 62.0 | 61.9 | 21.1 | 10.4 |
| 70 | 85.0 | 88.9 | 25.8 | 14.1 |
| 80 | 95.0 | 101.0 | 25.8 | 16.2 |
