SS-W02: AES W02 replacement

Description:
SS-W02: Repalcement of AES W02, Roten UNITEN 7K, Sterling 280L, Vulcan 1688L

Share this site:

  • Product Detail
  • Make an inquiry
SS-W02:Roten UNITEN 7K seal Aesseal W02 seal Sterling 280Lseal
Structure Description:
Equivalent to Roten UNITEN 7K seal Aesseal W02 seal Sterling 280Lseal
Operating Limits:
Temperature:-40℃ to +200℃
Pressure:≤0.8MPa
Speed:≤18m/s
Standard Size:20-80mm

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: TC, Steel
Secondary Seal:NBR,EPDM,Viton
Spring and Metal Parts:304/316
Applications:
Clean water,sewage water,oil and other moderately corrosive fluids.

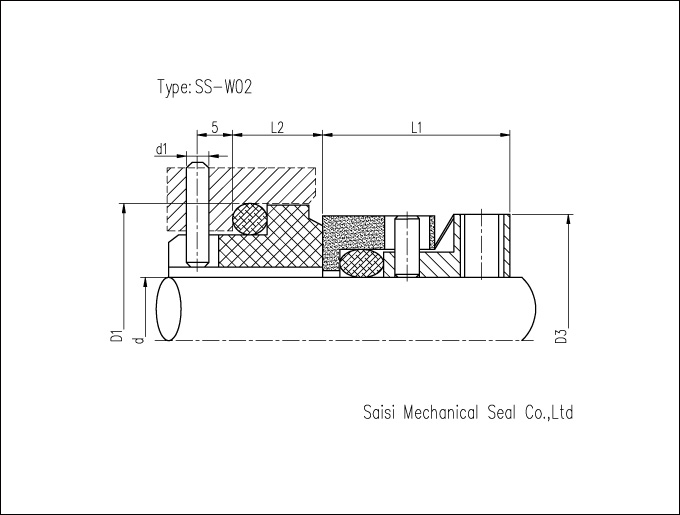

SS-W02 Dimensions(mm)
d D1 D3 d1 L1 L2
16 27.00  27.0  4.00  19.10  8.60
20 35.00  31.0  5.00  19.10  10.00
22 37.00  33.0  5.00  19.10  10.00
24 39.00  34.1  5.00  19.10  10.00
25 40.00  35.2  5.00  19.10  10.00
28 43.00  40.0  5.00  19.10  10.00
30 45.00  41.0  5.00  19.10  10.00
32 48.00  42.4  5.00  19.10  10.00
33 48.00  44.0  5.00  19.10  10.00
35 50.00  45.5  5.00  19.10  10.00
38 56.00  51.8  5.00  21.10  11.00
40 58.00  53.8  5.00  21.10  11.00
43 61.00  56.0  5.00  21.10  11.00
45 63.00  58.2  5.00  21.10  11.00
48 66.00  61.4  5.00  21.10  11.00
50 70.00  61.9  5.00  21.10  13.00
55 75.00  72.0  5.00  21.10  13.00
60 80.00  76.0  5.00  25.80  13.00
63 83.00  79.3  5.00  25.80  13.00
65 85.00  82.3  5.00  25.80  13.00
70 92.00  88.9  5.00  25.80  15.30
75 97.00  96.0  5.00  25.80  15.30
