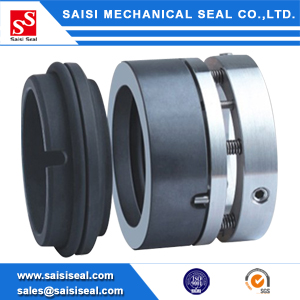

SS-W01: AES W01 mechanical seal
Structure Description:
Equivalent to John Crane 80 (DF/ FP) seal Aesseal W01 seal Flowserve 168 seal Latty T510 Roplan 800/ 850 seal Roten 7K seal Sterling 280 seal
Operating Limits:
Temperature：-40℃ to +200℃
Pressure：≤0.8MPa
Speed：≤18m/s
Standard Size：20-80mm
Materials:
Stationary Ring： Silicon Carbide, TC, Carbon
Rotary Ring： TC, Steel
Secondary Seal：NBR,EPDM,Viton
Spring and Metal Parts：Steel
Applications:
Clean water,sewage water,oil and other moderately corrosive fluids.
Structure Description:
Equivalent to John Crane 80 (DF/ FP) seal Aesseal W01 seal Flowserve 168 seal Latty T510 Roplan 800/ 850 seal Roten 7K seal Sterling 280 seal
Operating Limits:
Temperature：-40℃ to +200℃
Pressure：≤0.8MPa
Speed：≤18m/s
Standard Size：20-80mm
Materials:
Stationary Ring： Silicon Carbide, TC, Carbon
Rotary Ring： TC, Steel
Secondary Seal：NBR,EPDM,Viton
Spring and Metal Parts：Steel
Applications:
Clean water,sewage water,oil and other moderately corrosive fluids.

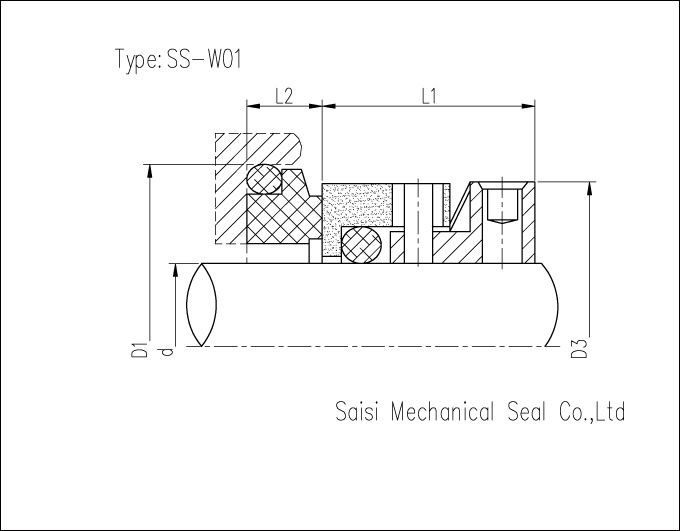

| SS-W01 Dimensions(mm) | ||||
| Size | D1 | D3 | L1 | L2 |
| 15.8 | 28.50 | 27.00 | 19.1 | 6.30 |
| 16.0 | 28.50 | 27.00 | 19.1 | 6.30 |
| 19.1 | 31.70 | 30.00 | 19.1 | 6.30 |
| 24.0 | 35.40 | 34.10 | 19.1 | 7.60 |
| 28.0 | 42.00 | 40.00 | 19.1 | 7.60 |
| 28.6 | 41.20 | 39.50 | 19.1 | 7.60 |
| 30.0 | 42.70 | 41.00 | 19.1 | 7.60 |
| 31.7 | 44.20 | 42.40 | 19.1 | 7.60 |
| 32.0 | 44.40 | 42.40 | 19.1 | 7.60 |
| 35.0 | 47.60 | 45.50 | 19.1 | 7.60 |
| 38.0 | 53.90 | 51.80 | 21.1 | 8.10 |
| 44.4 | 60.30 | 58.20 | 21.1 | 8.10 |
| 47.6 | 63.50 | 61.40 | 21.1 | 8.10 |
| 50.0 | 63.90 | 61.90 | 21.1 | 8.10 |
| 50.8 | 66.60 | 64.60 | 21.1 | 9.60 |
| 53.9 | 73.00 | 71.00 | 21.1 | 9.60 |
| 54.0 | 73.90 | 71.00 | 21.1 | 9.60 |
| 54.6 | 75.00 | 72.00 | 21.1 | 9.60 |
| 55.0 | 75.00 | 72.00 | 21.1 | 9.60 |
| 63.0 | 83.00 | 79.30 | 25.8 | 9.10 |
| 63.5 | 88.00 | 79.30 | 25.8 | 9.10 |
| 69.8 | 95.20 | 88.90 | 25.8 | 9.10 |
| 73.0 | 98.40 | 94.00 | 25.8 | 9.10 |
| 75.0 | 100.4 | 96.00 | 25.8 | 9.10 |
