SS-Type 9: AES M01, John crane Type 9 PTFE wedge seal

Description:
SS-Type 9: PTFE wedge seal, replacement of John crane Type9/109/909, AES M01, Roten 90, Sterling 290, Vulcan 1609, unbalanced seal

Share this site:

  • Product Detail
  • Make an inquiry
SS-Type 9
Structure Description:
Equivalent to AES M01,John crane Type 9 seal
Multiple spring , Unbalanced seal
Operating Limits:
Temperature:-40---250℃
Speed: 15m/s
Pressure: 25bar
Standard size: 0.5"--4"
Materials:
Seal ring: Car,Sic,Ssic,TC,Ceramic
Secondary seal: NBR,EPDM,Viton, etc.
Spring and metal parts:304,316,HAST.C

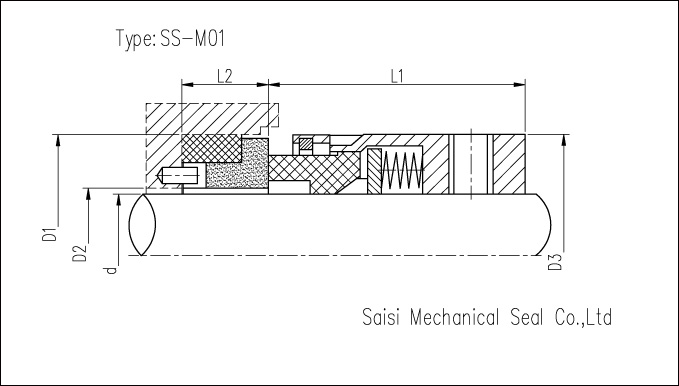

SS-Type 9 Dimensions(Inches)
d d D3 D2 D1 L1 L2
0.500 12.7 26.70 13.4 25.40 20.62 7.9
0.625 15.8 30.66 16.6 31.75 19.05 10.3
0.750 19.0 33.83 19.7 34.93 22.23 10.3
0.875 22.2 37.00 22.9 38.10 23.80 10.3
1.000 25.4 40.10 26.1 41.28 25.40 11.1
1.125 28.5 43.36 29.3 44.45 26.97 11.1
1.250 31.7 48.13 32.4 47.63 26.97 11.1
1.375 34.9 51.30 35.6 50.80 28.58 11.1
1.500 38.1 54.48 38.8 53.98 28.58 11.1
1.625 41.2 60.83 42.4 60.30 34.93 12.7
1.750 44.4 64.00 45.5 63.50 34.93 12.7
1.875 47.6 65.58 48.7 66.68 34.93 12.7
2.000 50.8 70.36 51.9 69.85 34.93 12.7
2.125 53.9 76.70 55.0 76.20 42.85 14.3
2.250 57.1 79.88 58.2 79.38 42.85 14.3
2.375 60.3 83.06 61.4 82.55 42.85 14.3
2.500 63.5 86.23 64.6 85.73 42.85 14.3
2.625 66.6 89.40 67.7 85.73 42.85 15.9
2.750 69.8 92.58 70.9 88.90 42.85 15.9
2.875 73.0 95.76 74.1 95.25 42.85 15.9
3.000 76.2 97.30 77.3 98.43 42.85 15.9
3.125 79.3 100.50 80.5 101.60 42.85 19.8
3.250 82.5 105.28 83.6 104.78 42.85 19.8
3.375 85.7 108.46 86.8 107.95 42.85 19.8
3.500 88.9 111.63 90.0 111.13 42.85 19.8
3.625 92.0 114.80 93.1 114.30 42.85 19.8
3.750 95.2 117.98 96.3 117.48 42.85 19.8
3.875 98.4 121.16 99.5 120.65 42.85 19.8
4.000 101.6 124.33 102.7 123.83 42.85 19.8
