SS-Type 1: Jonh crane Type 1, AES P05U unbalanced mechanical seal

Description:
SS-Type 1: Replacement of Burgmann MG901, John crane Type 1, AES P05U, Flowserve 51, Vulcan A5, elastomer bellows seal

Share this site:

  • Product Detail
  • Make an inquiry

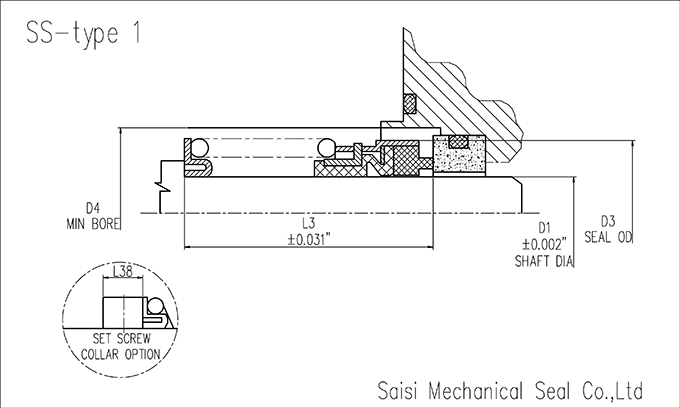

SS-Type 1
Structure Description:
Equivalent to John crane type 1 mechanical seal
UNBALANCED
SINGLE SPRING
BI-DIRECTIONAL
ELASTOMER BELLOWS
SET SCREW LOCK COLLARS AVAILABLE

Operating Limits:
Temperature:160°C / 320°F
Speed: 20 M/S – 4000 FPM
Pressure: 150 PSI / 10 BAR
Standard size:12-100mm or 0.5-4.0 inch

Materials:
Rotary ring:CARBON GRAPHITE, SILICON CARBIDE, TUNGSTEN CARBIDE
STATIONARY SEATS: CERAMIC, SILICON CARBIDE, TUNGSTEN CARBIDE, STAINLESS STEEL
BELLOWS: BUNA, VITON, EPDM, AFLAS, NEOPRENE
METAL PARTS: 304/316


D1 D3 D4 L3 L38
1.000 1.500 1.750 1.562 0.375
1.125 1.625 1.875 1.625 0.375
1.250 1.812 2.000 1.625 0.375
1.375 1.875 2.125 1.687 0.375
1.500 2.000 2.250 1.687 0.375
1.625 2.250 2.500 2.000 0.375
1.750 2.375 2.625 2.000 0.375
1.875 2.500 2.750 2.125 0.375
2.000 2.625 2.937 2.125 0.375
2.125 2.812 3.125 2.375 0.500
2.250 2.937 3.250 2.375 0.500
2.375 3.062 3.375 2.500 0.500
2.500 3.187 3.500 2.500 0.500
2.625 3.375 3.750 2.750 0.500
2.750 3.500 3.875 2.750 0.500
2.875 3.625 4.000 2.875 0.500
3.000 3.750 4.187 2.875 0.500
3.125 4.000 4.437 3.125 0.500
3.250 4.125 4.562 3.125 0.500
3.375 4.250 4.687 3.125 0.500
3.500 4.375 4.812 3.125 0.500
3.625 4.500 4.937 3.250 0.562
3.750 4.625 5.062 3.250 0.562
3.875 4.750 5.187 3.375 0.562
4.000 4.875 5.312 3.375 0.562
