SS-HJ92N: Burgmann HJ92N replacement

Description:
SS-HJ92N: Rplacement of Burgmann HJ92N, AES M010, Roplan 201, Roten EHS mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
HJ92N
Structure Description:
Equivalent to Burgmann HJ92N
Wave spring design,balanced seal
Operating Limits:
Temperature:-20---180℃
Speed:15m/s
Pressure:25bar
Standard Size:18-100mm
Material:
Seal ring:Car,Sic,Ssic,TC
Secondary seal:NBR,Viton,EPDM etc.
Spring and metal parts:304,316,HAST.C

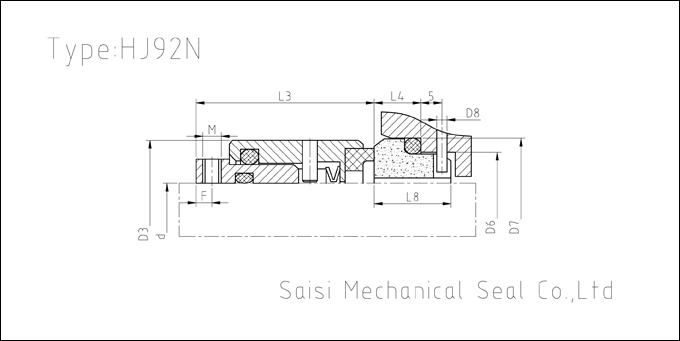

HJ92N
Size/Mettic d D3 D6 D7 D8 L3 L4 L8 F M
18 18 32 27 33 3 30.5 7 15 3 M4
20 20 34 29 35 3 30.5 7 15 3 M4
22 22 36 31 37 3 30.5 7 15 3 M4
24 24 38 33 39 3 33 7 15 3.5 M5
25 25 39 34 40 3 33 7 15 3.5 M5
28 28 42 37 43 3 35.5 7 15 3.5 M5
30 30 44 39 45 3 35.5 7 15 3.5 M5
32 32 47 42 48 3 35.5 7 15 3.5 M5
33 33 47 42 48 3 35.5 7 15 3.5 M5
35 35 49 44 50 3 35.5 7 15 3.5 M5
38 38 54 49 56 4 37 8 16 4 M5
40 40 56 51 58 4 37 8 16 4 M5
43 43 59 54 61 4 37 8 16 4 M5
45 45 61 56 63 4 37 8 16 4 M5
48 48 64 59 66 4 37 8 16 4 M5
50 50 66 62 70 4 38 9.5 17 4.5 M6
53 53 69 65 73 4 38 9.5 17 4.5 M6
55 55 71 67 75 4 38 9.5 17 4.5 M6
58 58 78 70 78 4 42 10.5 18 4.5 M6
60 60 80 72 80 4 42 10.5 18 4.5 M6
63 63 83 75 83 4 42 10.5 18 4.5 M6
65 65 85 77 85 4 42 10.5 18 4.5 M6
68 68 88 81 90 4 41.5 11 18.5 4.5 M6
70 70 90 83 92 4 48.5 11.5 19 5 M6
75 75 99 88 97 4 48.5 11.5 19 5.5 M8
80 80 104 95 105 4 48.5 11.5 19 5.5 M8
85 85 109 100 110 4 48.5 11.5 19 5.5 M8
90 90 114 105 115 4 52 13 20.5 5.5 M8
95 95 119 110 120 4 52 13 20.5 5.5 M8
100 100 124 115 125 4 52 13 20.5 5.5 M8
