SS-BT-PN: Burgmann BT-PN, John crane Type 106 mechanical seal

Description:
SS-BT-PN: Elastomer bellows seal, replacement of Burgmann BT-PN, John crane type 106 mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
SS-BT-PN:Burgmann BT-PN,John Crane Type 106 mechanical seal
Features:
Equivalent to Burgmann BT-PN,John Crane Type 106
Single and dual seals
Short axial installation length
Material approvals available

Operating range:
Shaft diameter: d1 = 8 … 30 mm
Pressure: p1* = 12 bar (170 PSI)
Temperature: t* = -20 °C … +120 °C (-4 °C … +248 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
*) Depending on medium, size and material

Materials:
Seal face: Carbon graphite resin impregnated (B), Carbon graphite solid (B3), Silicon carbide (Q1, Q6)
Seat: Steatite (X), Aluminium oxide (V, V1), Silicon carbide (Q1, Q6)
Elastomer: NBR (P), EPDM (E), FKM (V)
Metal parts: CrNiMo steel (G), CrNi steel (F)

Recommended applications:
Water and waste water technology
Building services industry
Food and beverage industry
Water and waste water
Beverages and food stuffs
Submersible motors up to 4 inches
Submersible pumps, back-to-back installation
Peripheral pumps for industrial applications
Domestic and garden pumps
Coffee machines
Water pumps

Advantages:
The small seal for increased pressure. The S-SBT-PN is a mechanical seal with a simple but effective design for mass-produced pumps. The special spring arrangement allows a short axial installation length. This advantage is combined with an increased working pressure capability and because the spring is free from torque transmission.

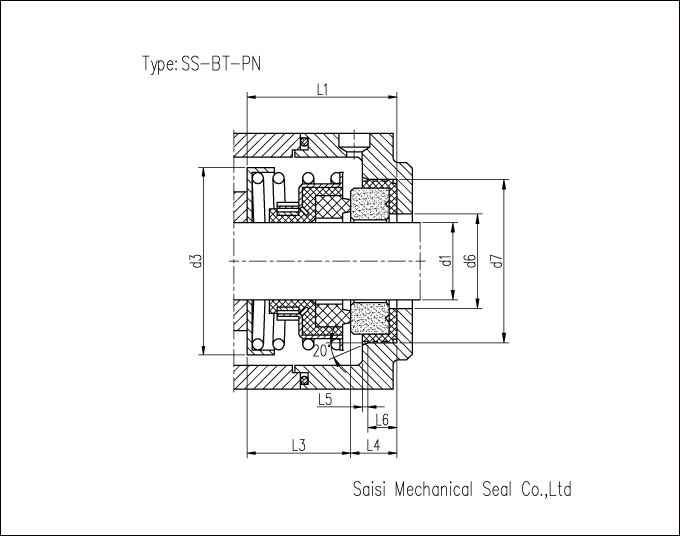

SS-BT-PN Dimensions(mm)
d1 d3 d6 d7 l1 toll l4 l5 l6
8.00  23 10 22.00  17.50  ±1 4.0  0.5 3.5
8.00  23 10 25.40  19.00  ±1 5.5 0.5 4.5
3/8" 23 12 25.40  19.00  ±1 5.5 0.5 4.5
10.00  23 12 25.40  19.00  ±1 5.5 0.5 4.5
13.00  32 17 29.50  20.80  +0.7/0 8.0  1.0  6.0
14.00  32 17 29.50  20.80  +0.7/0 8.0  1.0  6.0
15.00  32 17 29.50  20.80  +0.7/0 8.0  1.0  6.0
16.00  32 17 29.50  20.80  +0.7/0 8.0  1.0  6.0
16.00  32 17 29.50  24.30  +0.7/0 8.0  1.0  6.0
20.00  44 22 42.00  22.00  ±1 8.0  1.0  6.0
25.00  50 27 42.00  24.00  ±1 7.0  1.0  5.0
30.00  60 33 52.00  32.00  ±1 10.0  1.0  6.0
