SS-59U: John crane Type 59U, AES M03 unbalanced mechanical seal

Description:
SS-59U: PTFE wedge seal,replacement of John crane Type 59U, AES M03, Sterling 259, Vulcan 1659, Burgmann BT-C56.KU

Share this site:

  • Product Detail
  • Make an inquiry
SS-59U:John Crane Type 59U,Burgmann BT-C56.KU, AES M03,Sterling 259,VULCAN 1659
Structure Description:
Equivalent to John Crane Type 59U,Burgmann BT-C56.KU, AES M03,Sterling 259,VULCAN 1659
Multiple spring , unbalanced seal

Operating Limits:
Temperature:-40---250℃
Speed: 15m/s
Pressure: 12bar
Standard size: 14-100mm

Materials:
Seal ring: Car,Sic,Ssic,TC,Ceramic
Secondary seal: NBR,EPDM,Viton, etc.
Spring and Metal parts:304,316,HAST.C

General chemical applications, oil refining, petrochemical, and pharmaceutical industries.
Suitable for use with corrosive fluids and for cryogenic and high-temperature applications.
By choosing suitable component materials, the seals can be adapted to operate with a wide range of liquids and operating conditions.

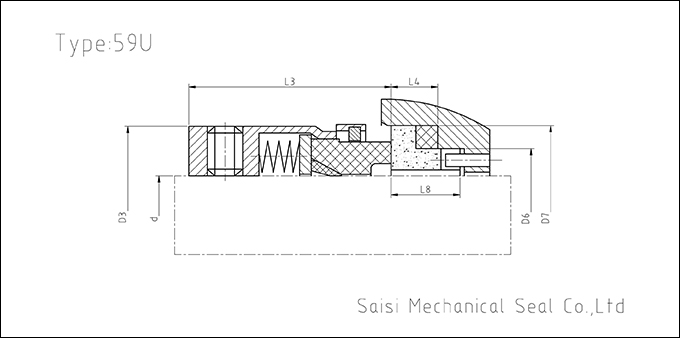

SS-59U Dimensions(mm)
Size d D3 D6 D7 L3 L4 L8
14 14 24 21 25 23.0 12.0 18.5
16 16 26 23 27 23.0 12.0 18.5
18 18 32 27 33 24.0 13.5 20.5
20 20 34 29 35 24.0 13.5 20.5
22 22 36 31 37 24.0 13.5 20.5
24 24 38 33 39 26.7 13.3 20.3
25 25 39 34 40 27.0 13.0 20.0
28 28 42 37 43 30.0 12.5 19.5
30 30 44 39 45 30.5 12.0 19.0
32 32 46 42 48 30.5 12.0 19.0
33 33 47 42 48 30.5 12.0 19.0
35 35 49 44 50 30.5 12.0 19.0
38 38 54 49 56 32.0 13.0 20.0
40 40 56 51 58 32.0 13.0 20.0
43 43 59 54 61 32.0 13.0 20.0
45 45 61 56 63 32.0 13.0 20.0
48 48 64 59 66 32.0 13.0 20.0
50 50 66 62 70 34.0 13.5 20.5
53 53 69 65 73 34.0 13.5 20.5
55 55 71 67 75 34.0 13.5 20.5
58 58 78 70 78 39.0 13.5 20.5
60 60 80 72 80 39.0 13.5 20.5
63 63 83 75 83 39.0 13.5 20.5
65 65 85 77 85 39.0 13.5 20.5
68 68 88 81 90 39.0 13.5 20.5
70 70 90 83 92 45.5 14.5 21.5
75 75 95 88 97 45.5 14.5 21.5
80 80 104 95 105 45.0 15.0 22.0
85 85 109 100 110 45.0 15.0 22.0
90 90 114 105 115 50.0 15.0 22.0
95 95 119 110 120 50.0 15.0 22.0
100 100 124 115 125 50.0 15.0 22.0
