SS-Type 32: John crane Type 32 replacement

Description:
SS-Type 32: Replacement of John crane Type 32 mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
Product discription:
Equivalent to John crane Type 32;
For mixers, agitators and reactor vessels;
Seal design eliminates the need for double seals with ancillary equipment in mixer applications;
SS-Type 32 Seals can be repaired in the field to minimize replacement costs, downtime and lost revenue.

Operating limits
Temperature:-45°C to 150°C/-50°F to 300°F(depending on materials used)
Pressure:Full vacuum to 15 bar g/225 psig
Speed:Up to 2 mps/400 fpm

Materials:
Face/Primary Ring:Carbon
Mating Ring:Tungsten Carbide Nickel Binder;High Purity Ceramic
O-Ring:Buna-N;Fluoroelastomer;Ethylene Propylene;Neoprene®
Spring and steel part:316

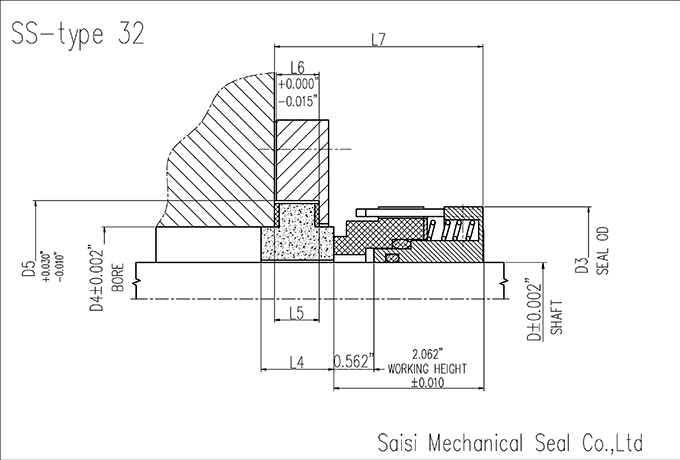

SS-Type 32 Dimensions(Inches)
D D3 D4 D5 L4 L5 L6 L7
1.000 2.500 1.937 2.281 0.812 0.500  0.468  2.718
1.125 2.625 2.000 2.406 0.812 0.500  0.468  2.718
1.250 2.750 2.187 2.656 0.875 0.500  0.468  2.750
1.375 2.875 2.312 2.781 0.875 0.500  0.468  2.750
1.500 3.000 2.500 3.031 0.875 0.500  0.468  2.750
1.625 3.125 2.625 3.156 0.875 0.500  0.468  2.750
1.750 3.250 2.750 3.281 0.875 0.500  0.468  2.750
1.875 3.375 2.875 3.531 1.000 0.625  0.593  2.875
2.000 3.500 3.125 3.781 1.000 0.625  0.593  2.875
2.125 3.625 3.250 3.906 1.000 0.625  0.593  2.875
2.250 3.750 3.375 4.031 1.000 0.625  0.593  2.875
2.375 3.875 3.500 4.156 1.000 0.625  0.593  2.875
2.500 4.000 3.625 4.281 1.000 0.625  0.593  2.875
2.625 4.125 3.750 4.406 1.000 0.625  0.593  2.875
2.750 4.250 3.875 4.531 1.000 0.625  0.593  2.875
2.875 4.375 4.000 4.656 1.000 0.625  0.593  2.875
3.000 4.500 4.062 4.718 1.000 0.625  0.593  2.875
3.125 4.625 4.250 4.906 1.000 0.625  0.593  2.875
3.250 4.750 4.375 5.031 1.000 0.625  0.593  2.875
3.375 4.875 4.500 5.156 1.000 0.625  0.593  2.875
3.500 5.000 4.625 5.281 1.000 0.625  0.593  2.875
3.625 5.125 4.750 5.406 1.000 0.625  0.593  2.875
3.750 5.250 4.875 5.531 1.000 0.625  0.593  2.875
3.875 5.375 5.000 5.656 1.000 0.625  0.593  2.875
4.000 5.500 5.250 5.906 1.000 0.625  0.593  2.875

SS-Type 32 Dimensions(Inches)
D D3 D4 D5 L4 L5 L6 L7
4.125 5.625 5.375 6.031 1.000 0.625  0.593  2.875
4.250 5.750 5.500 6.156 1.000 0.625  0.593  2.875
4.375 5.875 5.625 6.281 1.000 0.625  0.593  2.875
4.500 6.000 5.750 6.406 1.000 0.625  0.593  2.875
4.625 6.125 5.875 6.531 1.000 0.625  0.593  2.875
4.750 6.250 6.000 6.656 1.000 0.625  0.593  2.875
4.875 6.375 6.125 6.781 1.000 0.625  0.593  2.875
5.000 6.500 6.250 6.906 1.000 0.625  0.593  2.875
5.125 6.625 6.625 7.281 1.000 0.625  0.593  2.875
5.250 6.750 6.750 7.406 1.000 0.625  0.593  2.875
5.275 6.875 6.875 7.531 1.000 0.625  0.593  2.875
5.500 7.000 7.000 7.656 1.000 0.625  0.593  2.875
5.625 7.125 7.125 7.781 1.000 0.625  0.593  2.875
5.750 7.250 7.250 7.906 1.000 0.625  0.593  2.875
5.875 7.375 7.375 8.031 1.000 0.625  0.593  2.875
6.000 7.500 7.500 8.156 1.000 0.625  0.593  2.875
6.125 7.625 7.625 8.281 1.000 0.625  0.593  2.875
6.250 7.750 7.750 8.406 1.000 0.625  0.593  2.875
6.375 7.875 7.875 8.531 1.000 0.625  0.593  2.875
6.500 8.000 8.000 8.656 1.000 0.625  0.593  2.875
6.625 8.125 8.125 8.781 1.000 0.625  0.593  2.875
6.750 8.250 8.250 8.906 1.000 0.625  0.593  2.875
6.875 8.375 8.375 9.031 1.000 0.625  0.593  2.875
7.000 8.500 8.500 9.156 1.000 0.625  0.593  2.875
