SS-609
Structure Description:
Equivalent to John Crane metal bellow seal type 609
Welded metal bellows design
Operating Limits:
Temperature: -20---400℃
Speed: 20m/s
Pressure: 25bar
Standard size: 1.0''-4.0''
Material:
Seal ring: Car,Sic,Ssic,TC
Secondary seal: Carbon graphite
Spring and Metal parts:304,316,AM350,HAST.C,Inconel 718,Titanium
SS-609 is a high-temperature (to 425°C/800°F) rotating seal head assembly that incorporates all of the rugged features of the THIJO SDKJFAJF ype 604, but is intended for those demanding applications where a dependable, high-strength, rotating seal is preferred. A narrow cross-section design enables the SS609 to fit in the most popular pumps without expensive and time-consuming seal chamber modifications. This makes it the ideal seal for heat transfer, hydrocarbon and other applications that commonly use pumps with limited seal chamber clearances. Typical applications include hot hydrocarbons, aqueous solutions, aromatic fractionation products, crude oil fractionation products and heat transfer fluids.
Structure Description:
Equivalent to John Crane metal bellow seal type 609
Welded metal bellows design
Operating Limits:
Temperature: -20---400℃
Speed: 20m/s
Pressure: 25bar
Standard size: 1.0''-4.0''
Material:
Seal ring: Car,Sic,Ssic,TC
Secondary seal: Carbon graphite
Spring and Metal parts:304,316,AM350,HAST.C,Inconel 718,Titanium
SS-609 is a high-temperature (to 425°C/800°F) rotating seal head assembly that incorporates all of the rugged features of the THIJO SDKJFAJF ype 604, but is intended for those demanding applications where a dependable, high-strength, rotating seal is preferred. A narrow cross-section design enables the SS609 to fit in the most popular pumps without expensive and time-consuming seal chamber modifications. This makes it the ideal seal for heat transfer, hydrocarbon and other applications that commonly use pumps with limited seal chamber clearances. Typical applications include hot hydrocarbons, aqueous solutions, aromatic fractionation products, crude oil fractionation products and heat transfer fluids.

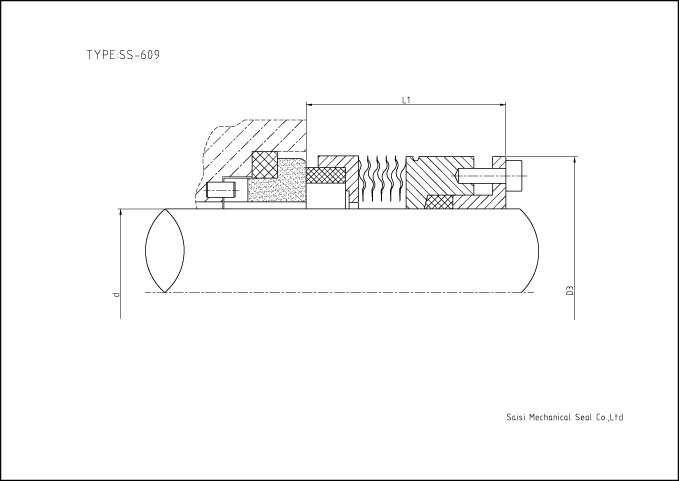

| SS-609 Dimensions(Inches) | |||
| Size | d | D3 | L1 |
| 1.000 | 25.40 | 41.28 | 38.95 |
| 1.125 | 28.58 | 44.45 | 39.87 |
| 1.250 | 31.75 | 47.63 | 40.66 |
| 1.375 | 34.93 | 50.80 | 40.66 |
| 1.500 | 38.10 | 53.98 | 40.66 |
| 1.625 | 41.28 | 57.15 | 40.66 |
| 1.750 | 44.45 | 60.33 | 41.48 |
| 1.875 | 47.63 | 63.50 | 41.48 |
| 2.000 | 50.80 | 66.68 | 42.26 |
| 2.125 | 53.98 | 69.85 | 42.26 |
| 2.250 | 57.15 | 73.03 | 43.86 |
| 2.375 | 60.33 | 76.20 | 43.86 |
| 2.500 | 63.50 | 82.55 | 44.65 |
| 2.625 | 66.68 | 85.73 | 45.44 |
| 2.750 | 69.85 | 88.90 | 45.44 |
| 2.875 | 73.03 | 93.65 | 47.83 |
| 3.000 | 76.20 | 96.82 | 47.83 |
| 3.125 | 79.38 | 101.60 | 47.83 |
| 3.250 | 82.55 | 104.78 | 47.83 |
| 3.375 | 85.73 | 107.95 | 47.83 |
| 3.500 | 88.90 | 111.13 | 47.83 |
| 3.625 | 92.08 | 114.30 | 47.83 |
| 3.750 | 95.25 | 117.48 | 47.83 |
| 3.875 | 98.43 | 120.65 | 47.83 |
| 4.000 | 101.60 | 123.83 | 47.83 |
