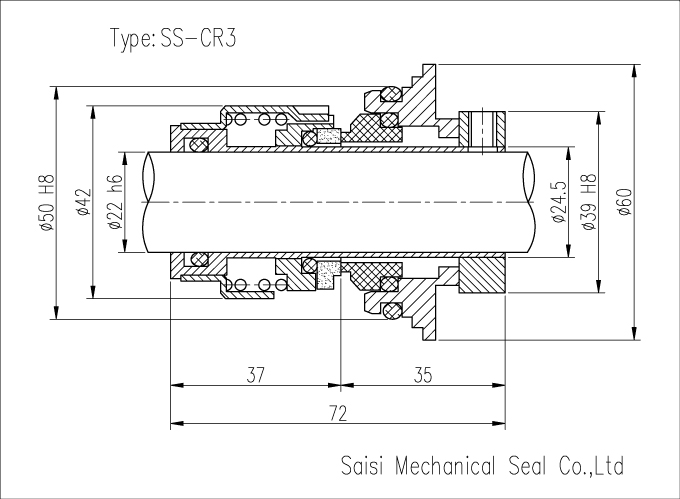

SS-CR3: Grundfos pump seal

Description:
SS-CR3: Gruandfos pumps seal

Share this site:

  • Product Detail
  • Make an inquiry
Description
Equivalent with Grundfos type H pump seal;
Shaft size:22MM;
Balanced, cartridge O-ring seal unit with rigid torque transmission system;
This seal type is assembled in a cartridge unit which makes replacement safe and easy;
Similar to the type D seal, the balancing makes this O-ring seal type suitable for high-pressure applications.

Operating Limits:
Temperature: -20ºCto +180ºC
Pressure: ≤1.2MPa
Speed: ≤10m/s
Standard Size:22mm

Materials:
Stationary Ring: Carbon, Silicon Carbide, TC
Rotary Ring: Silicon Carbide, TC, ceramic
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: 316

Cross reference between the seal and pump models
CM CH CHI CHIU CHIE CR CRI CRN CRE CRIE CRNE SP SPA TP TPD TPE TPED NBG NKG NK LP(HQQE,HQQV,CVBE,CVBV,AQQV,AQQE,KUBV,HUUE,BAQE,GQQE,AUUE,RUUE,BUBE)
CR1s CR1 CR2 CR3 CR4 CR5 CR8 CR10 CR15 CR16 CR20 CR32 CR45 CR64 CR90 (HQQE HQQV)
CRN1s CRN1 CRN2 CRN3 CRN4 CRN5 CRN8 CRN10 CRN15 CRN16 CRN20 CRN32 CRN45 CRN64 CRN90 (HQQE HQQV)
TP25 TP32 TP40 TP50 TP65 TP80 TP100 TP125 TP150 TP200 BAQE BUBE BQQE GQQE LP NB NBG (BUUE BUUV)
CH2 CH4 CH8 CH12 CVBE CVBV CHI2 CHI4 CHI8 CHI12 (BQQV BUBE BQQE)
S range pumps, SE and SV series pumps, Grundfos Sarlin pumps , Grundfos Hilge pumps
