SS-T0R/T0RV: AES T0R/T0RV, Roplan R53, Roten L/P/3P, Sterling SAPV replacment

Description:
SS-T0R/T0RV: Perfect replacement of AES T0R/T0RV, Roplan R53, Roten L/P/3P, Sterling SAPV mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
SS-T0R/SS-T0RV: AES T0R,AES T0RV mechanical seal
Structure Description:
Equivalent to AES T0R, AES T0RV mechanical seal Seals to suit APV Pumps ZMA, ZMB, ZMD, ZMH, ZMK & ZMS
Operating Limits:
Temperature：-10℃ to +120℃
Pressure： ≤1.5MPa
Speed： ≤12m/s
Materials:
Stationary Ring：Silicon Carbide, Carbon ,TC,
Rotary Ring：Carbon ,Silicon Carbide,TC
Secondary Seal：EPDM,Viton
Spring and Metal Parts：304/316

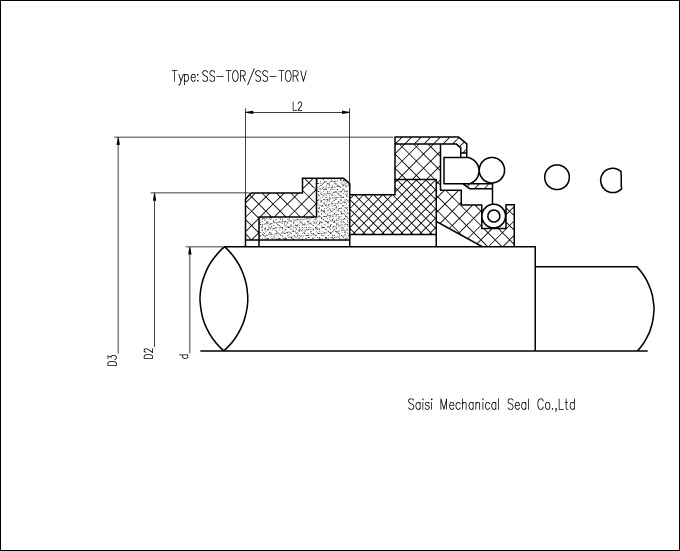

SS-T0R/SS-T0RV Dimensions(mm)
Size code D2 D3 L2
20 0.200  30.00  40.60  9.8
25 0.250  35.00  45.40  9.8
30 0.300  42.00  57.00  13
