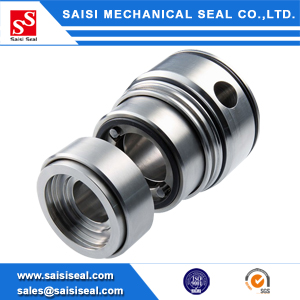

SS-Convertor II: AES Convertor II cartridge seal

Description:
SS-Convertor II: Replacement of AES Convertor II cartridge seal

Share this site:

  • Product Detail
  • Make an inquiry
Structure Description
Equivalent to AES convertor Ⅱ seal
Single cartridge seal
Operating Limits
Temperature：-20---220℃
Speed：15m/s
Pressure：25bar
Standard Size:24-100mm or 1.0″-4.0″
Materials:
Seal ring:Car,Sic,Ssic,TC
Secondary seal:NBR，Viton，EPDM，Kalrez,PTFE
Spring and metal parts:304,316,HAST.C

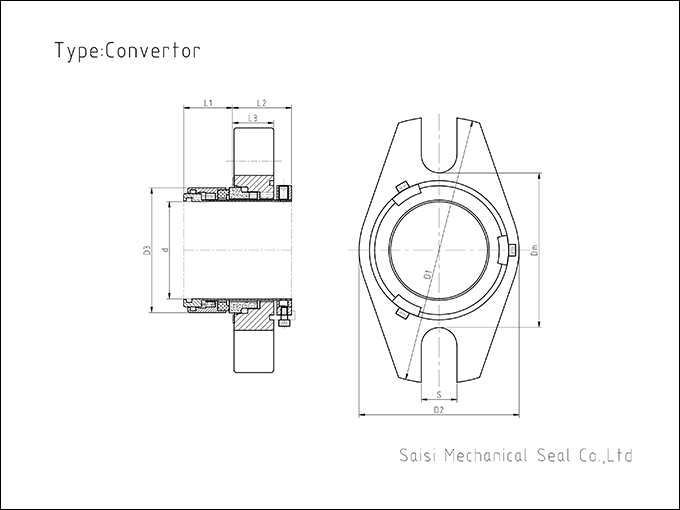

SS-ConvertorⅡDimensions(Inches)
d D1 Dm L3 D2 D3 Min D3 Max S L12 L2
1.000 4.000 2.187 0.812 2.208 1.625 1.875 0.500 1.125 1.250
1.125 4.125 2.312 0.812 2.333 1.750 2.000 0.500 1.125 1.250
1.250 4.250 2.437 0.812 2.458 1.875 2.215 0.500 1.125 1.250
1.375 4.250 2.625 0.812 2.645 2.000 2.250 0.500 1.125 1.250
1.500 4.500 2.812 0.875 2.833 2.250 2.500 0.500 1.125 1.312
1.625 4.750 2.937 0.875 2.958 2.375 2.625 0.500 1.125 1.312
1.750 5.000 3.062 0.937 3.083 2.500 2.750 0.500 1.187 1.375
1.875 5.250 3.187 0.937 3.207 2.625 2.875 0.500 1.187 1.375
2.000 5.500 3.312 1.000 3.333 2.750 3.000 0.625 1.187 1.437
2.125 5.750 3.437 1.000 3.458 2.875 3.125 0.625 1.187 1.437
2.250 6.500 3.750 1.000 3.895 3.000 3.375 0.750 1.187 1.437
2.375 6.500 3.750 1.000 3.895 3.125 3.375 0.750 1.187 1.437
2.500 7.000 4.375 1.000 4.770 3.375 4.000 0.750 1.125 1.625
2.625 7.000 4.375 1.000 4.770 3.500 4.000 0.750 1.125 1.625
2.750 7.000 4.375 1.000 4.770 3.625 4.000 0.750 1.125 1.625
2.875 7.500 4.937 1.250 5.145 3.750 4.500 0.750 1.187 2.000
3.000 7.500 4.937 1.250 5.145 3.875 4.500 0.750 1.187 2.000
3.125 7.500 4.937 1.250 5.145 4.000 4.500 0.750 1.187 2.000
3.250 8.000 5.312 1.250 5.520 4.125 4.875 0.750 1.187 2.000
3.375 8.000 5.312 1.250 5.520 4.250 4.875 0.750 1.187 2.000
3.500 8.000 5.312 1.250 5.520 4.375 4.875 0.750 1.187 2.000
3.625 8.500 5.687 1.250 5.895 4.500 5.250 0.750 1.187 2.000
3.750 8.500 5.687 1.250 5.895 4.625 5.250 0.750 1.187 2.000
3.875 8.500 5.687 1.250 5.895 4.750 5.250 0.750 1.187 2.000
4.000 9.000 6.062 1.250 6.145 4.875 5.500 0.750 1.187 2.000

SS-ConvertorⅡDimensions(mm)
d D1 Dm L3 D2 D3 Min D3 Max S L1 L2
24 101.6 55.6 20.7 56.1 40.0 48.0 12.0 28.6 31.8
25 101.6 55.6 20.7 56.1 41.0 48.0 12.0 28.6 31.8
28 104.8 58.8 20.7 59.3 44.0 50.0 12.0 28.6 31.8
30 108.0 61.9 20.7 62.4 46.0 54.0 12.0 28.6 31.8
32 108.0 61.9 20.7 62.4 48.0 54.0 12.0 28.6 31.8
33 108.0 61.9 20.7 62.4 49.0 55.0 12.0 28.6 31.8
35 108.0 66.7 20.7 67.2 51.0 59.0 12.0 28.6 31.8
38 114.3 71.5 22.3 72.0 57.2 62.0 12.0 28.6 33.4
40 114.3 71.5 22.3 72.0 58.0 64.0 12.0 28.6 33.4
43 120.7 74.6 22.3 75.1 61.0 67.0 12.0 28.6 33.4
45 127.0 77.8 23.8 78.3 63.5 69.0 12.0 30.2 35.0
48 133.4 81.0 23.8 81.5 66.7 72.0 12.0 30.2 35.0
50 133.4 81.0 23.8 81.5 68.0 74.0 12.0 30.2 35.0
53 139.7 84.2 25.4 84.7 71.0 77.0 16.0 30.2 36.5
55 146.1 87.3 25.4 87.8 74.0 79.0 16.0 30.2 36.5
58 165.1 95.3 25.4 98.9 79.4 85.7 20.0 30.2 36.5
60 165.1 95.3 25.4 98.9 79.4 85.7 20.0 30.2 36.5
63 177.8 111.2 25.4 121.2 85.8 101.6 20.0 28.6 41.2
65 177.8 111.2 25.4 121.2 88.9 101.6 20.0 28.6 41.2
68 177.8 111.2 25.4 121.2 92.1 101.6 20.0 28.6 41.2
70 177.8 111.2 25.4 121.2 92.1 101.6 20.0 28.6 41.2
75 190.5 125.4 31.7 130.7 98.5 114.3 20.0 30.2 50.8
80 190.5 125.4 31.7 130.7 101.6 114.3 20.0 30.2 50.8
85 203.2 135.0 31.7 140.2 108.0 123.8 20.0 30.2 50.8
90 215.9 144.5 31.7 149.7 114.3 133.3 20.0 30.2 50.8
95 215.9 144.5 31.7 149.7 117.5 133.3 20.0 30.2 50.8
100 228.5 154.0 31.7 156.1 123.9 139.7 20.0 30.2 50.8
