SS-Cartex-SN: Burgmann Cartex Single seal replacement

Description:

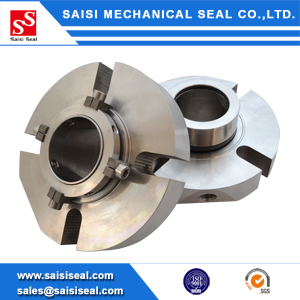

SS-Cartex-SN: Replacement of Burgmann Cartex Single seal mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
Structure Description
Equivalent to Burgmann Cartex-SN
Single cartridge mechanical seal
Multiple spring,balanced,most popular type
Operating Limits
Temperature:-50---204℃
Speed:23m/s
Pressure:20bar
Standard Size:25-100mm or 1″-4.00″
Material:
Seal Ring:Car,Sic,Ssic,TC
Secondary seal:NBR，Viton，EPDM，Kalrez
Spring and metal parts:304,316,HAST.C

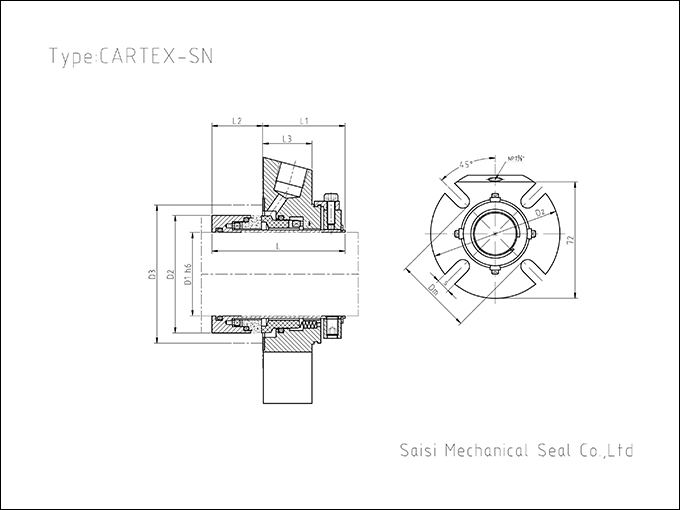

SS-Cartex-SN Dimensions(mm)
D1 D2 D3min D3max L L12 L2 L3 Dm Dz S
25 43.0 44.0 51.5 67.0 42.4 24.6 25.4 62 105 13.2
28 46.0 47.0 52.0 67.0 42.4 24.6 25.4 62 105 13.2
30 48.0 49.0 56.0 67.0 42.4 24.6 25.4 65 105 13.2
32 49.8 51.0 57.0 67.0 42.4 24.6 25.4 67 108 13.2
33 49.8 51.0 57.0 67.0 42.4 24.6 25.4 67 108 13.2
35 53.0 54.0 61.5 67.0 42.4 24.6 25.4 70 113 13.2
38 56.0 57.0 66.0 67.0 42.4 24.6 25.4 75 123 13.2
40 58.0 59.0 68.0 67.0 42.4 24.6 25.4 75 123 14.2
42 60.5 61.5 69.5 67.0 42.4 24.6 25.4 80 133 14.2
43 60.5 61.5 70.5 67.0 42.4 24.6 25.4 80 133 14.2
45 62.5 64.0 73.0 67.0 42.4 24.6 25.4 81 138 14.2
48 65.6 67.0 75.0 67.0 42.4 24.6 25.4 84 138 14.2
50 68.0 69.0 78.0 67.0 42.4 24.6 25.4 87 148 14.2
53 72.0 73.0 87.0 67.0 42.4 24.6 25.4 97 148 18.0
55 73.0 74.0 83.0 67.0 42.4 24.6 25.4 90 148 18.0
60 78.0 79.0 91.0 67.0 42.4 24.6 25.4 102 157 18.0
65 84.8 85.7 98.5 67.0 42.4 24.6 25.4 109 163 18.0
70 93.0 95.0 108.0 67.0 42.4 24.6 25.4 118 178 18.0
75 100.0 101.6 118.0 84.0 57.4 26.6 28.0 129 190 18.0
80 106.4 108.0 124.0 84.0 57.4 26.6 28.0 135 195 18.0
85 109.5 111.1 128.0 84.0 57.4 26.6 28.0 139 198 22.0
90 115.9 117.5 135.0 84.0 57.4 26.6 28.0 145 205 22.0
95 119.1 120.7 138.0 84.0 57.4 26.6 28.0 148 208 22.0
100 125.4 127.0 144.0 84.0 57.4 26.6 28.0 154 218 22.0
