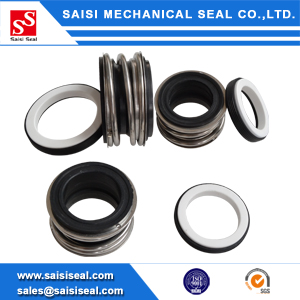

SS-MG1: Burgmann MG1 series mechanical seal

Description:
SS-MG1: Replacement of Burgmann MG1/MG12/MG13/MG1S20 Flowserve 190/192/193 Roten L3/L3K/L3N Sterling SMG1/SMG12/SMG13 Vulcan 19/192/193

Share this site:

  • Product Detail
  • Make an inquiry
SS-MG1: Burgmann MG1 mechanical seals
Structure Description:
Equivalent to Bergmann MG1,MG12,MG13,MG1S20 mechanical seal
Rubber bellows design

Operating Limits:
Temperature:-20---120℃
Speed: 10m/s
Pressure: 12bar
Standard size: 10mm--100mm

Materials:
Seal ring: Car,Sic,Ssic,TC
Secondary seal: NBR,EPDM,Viton etc.
Spring and metal parts:304,316,HAST.C

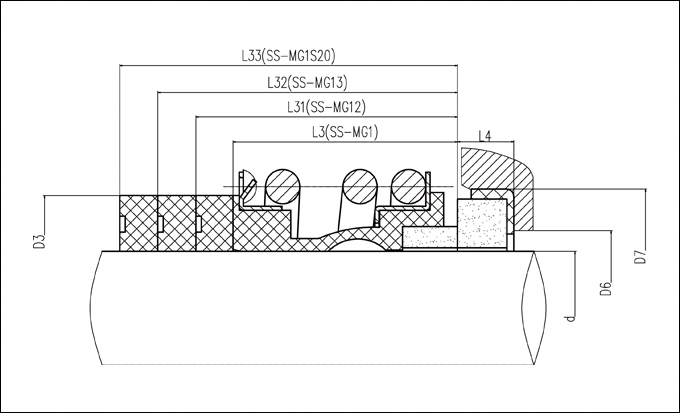

SS-MG1 Series
d(mm) D3 D6 D7 L3 L31 L32 L33 L4
10 22.5 17 21 14.5 25.9 33.4 25.0 6.6
12 25.0 19 23 15.0 25.9 33.4 25.0 6.6
14 28.5 21 25 17.0 28.4 33.4 25.0 6.6
15 28.5 - - 17.0 28.4 33.4 25.0 -
16 28.5 23 27 17.0 28.4 33.4 25.0 6.6
18 32.0 27 33 19.5 30.0 37.5 25.0 7.5
19 37.0 - - 21.5 30.0 37.5 25.0 -
20 37.0 29 35 21.5 30.0 37.5 25.0 7.5
22 37.0 31 37 21.5 30.0 37.5 25.0 7.5
24 42.5 33 39 22.5 32.5 42.5 25.0 7.5
25 42.5 34 40 23.0 32.5 42.5 25.0 7.5
28 49.0 37 43 26.5 35.0 42.5 33.0 7.5
30 49.0 39 45 26.5 35.0 42.5 33.0 7.5
32 53.5 42 48 27.5 35.0 47.5 33.0 7.5
33 53.5 42 48 27.5 35.0 47.5 33.0 7.5
35 57.0 44 50 28.5 35.0 47.5 33.0 7.5
38 59.0 49 56 30.0 36.0 46.0 33.0 9.0
40 62.0 51 58 30.0 36.0 46.0 33.0 9.0
42 65.5 - - 30.0 36.0 51.0 41.0 -
43 65.5 54 61 30.0 36.0 51.0 41.0 9.0
45 68.0 56 63 30.0 36.0 51.0 41.0 9.0
48 70.5 59 66 30.5 36.0 51.0 41.0 9.0
50 74.0 62 70 30.5 38.0 50.5 41.0 9.5
53 78.5 65 73 33.0 36.5 59.0 41.0 11.0
55 81.0 67 75 35.0 36.5 59.0 41.0 11.0
58 85.5 70 78 37.0 41.5 59.0 41.0 11.0
60 88.5 72 80 38.0 41.5 59.0 41.0 11.0
65 93.5 77 85 40.0 41.5 69.0 49.0 11.0
68 96.5 81 90 40.0 41.2 68.7 49.0 11.3
70 99.5 83 92 40.0 48.7 68.7 49.0 11.3
75 107.0 88 97 40.0 48.7 68.7 52.0 11.3
80 112.0 95 105 40.0 48.0 78.0 56.0 12.0
85 120.0 100 110 41.0 46.0 76.0 56.0 14.0
90 127.0 105 115 45.0 51.0 76.0 59.0 14.0
95 132.0 110 120 46.0 51.0 76.0 59.0 14.0
100 137.0 115 125 47.0 51.0 76.0 62.0 14.0
