SS-4610: John crane Type 4610 replacement

Description:
SS-4610: Replacement of John crane Type 4610 mechanical seal, Cartridge mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
Structure Description:
Equivalent to John crane Type 4610
Single cartridge mechanical seal
Operating Limits
Temperature: 205° C/400° F*maximum
Pressure: ≤ 21 bar
Speed: ≤ 3600 rpm
Standard Size: 24-70mm or 1-2.75''
Material:
Stationary Ring: Silicon Carbide,
Rotary Ring: Carbon,
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: 316

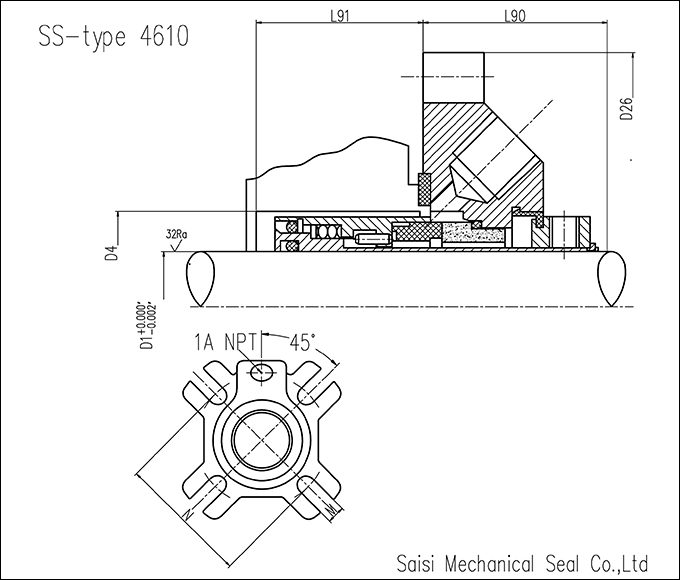

SS-4610 Dimentions(Inches)
D1(Inch) D4 Box Bore
Min.    Max.		 D26 L90
Min.		 L91 N
Min.    Max.		 M
1.000 1.615 1.940 4.125 1.422 1.267 2.62 3.75 0.437
1.125 1.730 2.060 4.250 1.422 1.267 2.75 3.87 0.437
1.250 1.875 2.190 4.370 1.422 1.267 2.87 4.00 0.437
1.375 2.000 2.310 4.500 1.422 1.267 3.06 4.12 0.437
1.500 2.250 2.500 5.000 1.462 1.313 3.43 4.50 0.563
1.625 2.360 2.500 5.000 1.462 1.313 3.43 4.50 0.563
1.750 2.500 2.625 5.250 1.462 1.313 3.56 4.75 0.563
1.875 2.625 3.000 5.500 1.462 1.313 3.87 5.00 0.563
2.000 2.750 3.000 5.500 1.462 1.313 3.87 5.00 0.563
2.125 2.875 3.310 5.750 1.462 1.313 4.37 5.12 0.563
2.250 3.000 3.310 5.750 1.462 1.313 4.37 5.12 0.689
2.375 3.130 3.560 6.000 1.462 1.313 4.62 5.37 0.689
2.500 3.250 3.875 6.250 1.462 1.433 4.87 5.62 0.689
2.625 3.500 3.875 6.250 1.482 1.433 4.87 5.62 0.689
2.750 3.740 3.875 6.250 1.482 1.433 4.87 5.62 0.689

SS-4610 Dimentions(mm)
D1(mm) D4 Box Bore
Min.    Max.		 D26 L90
Min.		 L91 N
Min.    Max.		 M
24 40.0 49.2 104.8 36 32 66.7 95.3 11.1
25 41.0 49.2 104.8 36 32 66.7 95.3 11.1
28 44.0 52.4 108.0 36 32 69.9 98.4 11.1
30 46.0 55.6 111.0 36 32 73.0 101.6 11.1
32 47.6 55.6 111.0 36 32 73.0 101.6 11.1
33 49.0 58.7 114.3 36 32 73.0 101.6 11.1
35 50.8 58.7 114.3 36 32 77.8 104.8 11.1
38 57.15 63.5 127.0 37 33 87.3 114.3 14.3
40 60.0 63.5 127.0 37 33 87.3 114.3 14.3
43 63.0 66.7 133.4 37 33 90.5 120.7 14.3
45 63.5 66.7 133.4 37 33 90.5 120.7 14.3
48 66.7 76.2 139.7 37 33 98.4 127.0 14.3
50 69.8 76.2 139.7 37 33 98.4 127.0 14.3
53 73.0 84.1 146.0 37 33 111.1 130.2 17.5
55 73.0 84.1 146.0 37 33 111.1 130.2 17.5
58 79.4 90.5 152.4 37 33 117.5 136.5 17.5
60 79.4 90.5 152.4 37 33 117.5 136.5 17.5
63 82.6 98.4 158.8 37 36 123.8 142.9 17.5
65 88.9 98.4 158.8 37.5 36 123.8 142.9 17.5
70 95.0 98.4 158.8 37.5 36 123.8 142.9 17.5
