SS-ROA: Flowserve RO mechanical seal replacement

Description:
SS-ROA: Perfect replacement of Flowserve RO mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
SS-ROA:Flowserve RO mechanical seal
Structure Description:
Equivalent to Flowserve RO type seal
Mutiple spring design
Operating Limits:
Temperature:-20--180℃
Speed:15m/s
Pressure:10bar
Standard Size:20--100mm
Materials:
Seal Ring:Car,Sic,Ssic,TC
Secondary seal:NBR,Viton,EPDM etc.
Spring and metal parts:304,316,HAST.C

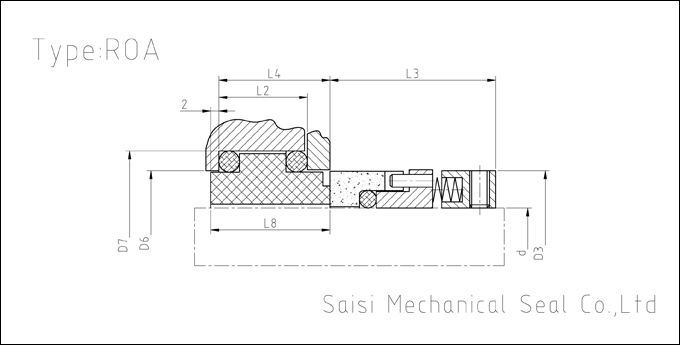

SS-ROA Dimensions(mm)
Size d D3 D6 D7 L2 L3 L4 L8
20 20 34 36 42 18 35 23 25
22 22 36 38 44 18 35 23 25
24 24 38 40 46 18 35 23 25
25 25 39 41 47 18 35 23 25
28 28 42 44 50 18 35 23 25
30 30 44 46 52 18 35 23 25
32 32 46 48 54 18 35 23 25
33 33 47 49 55 18 35 23 25
35 35 49 51 57 18 35 23 25
38 38 54 58 64 20 38 25 27
40 40 56 60 66 20 38 25 27
42 42 58 62 68 20 38 25 27
43 43 59 63 69 20 38 25 27
45 45 61 65 71 20 38 25 27
48 48 64 68 74 20 38 25 27
50 50 66 70 76 20 39 25 27
52 52 68 72 78 20 40 25 27
53 53 69 73 79 20 40 25 27
55 55 71 75 81 20 40 25 27
58 58 76 83 89 22 41 28 30
60 60 78 85 91 22 41 28 30
62 62 80 87 93 22 41 28 30
63 63 81 88 94 22 41 28 30
65 65 83 90 96 22 41 28 30
68 68 86 93 99 24 41 30 32
70 70 90 95 101 24 42 30 32
75 75 95 104 110 24 42 30 32
80 80 100 109 115 25 42 31 33
85 85 105 114 120 25 43 31 33
90 90 110 119 125 25 45 31 33
95 95 115 124 130 25 45 31 33
100 100 120 129 135 25 45 31 33
