SS-9BT: John crane Type 9BT, AES M06 mechanical seal

Description:
SS-9BT: PTFE wedge seal, replacement of John crane Type 9BT, AES M06, Sterling 294B, Vulcan 1645B

Share this site:

  • Product Detail
  • Make an inquiry
SS-9BT
Structure Description:
Equivalent to AES M06,John Crane Type 9BT seal
Multiple spring , balanced seal

Operating Limits:
Temperature:-40---250℃
Speed: 15m/s
Pressure: 25bar
Standard size: 1"--4"

Material:
Seal ring: Car,Sic,Ssic,TC,Ceramic
Secondary seal: NBR,EPDM,Viton, etc.
Spring and metal parts:304,316,HAST.C

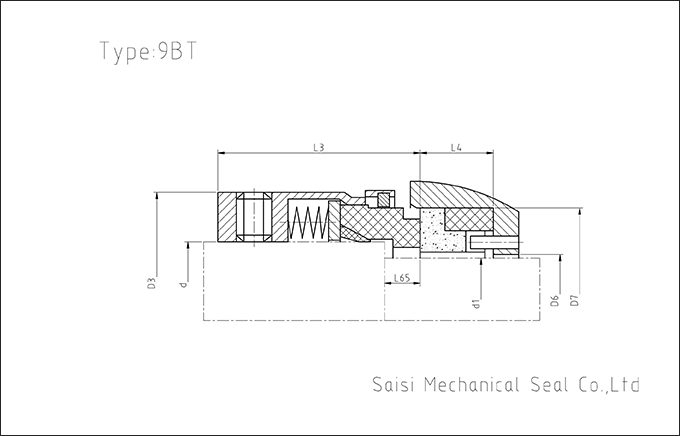

SS-9BT Dimensions(Inches)
Size d d1 D3 D6 D7 L3 L4 L65
1.000 25.4 22.2 36.50 22.9 38.10 33.32 10.3 8.7
1.125 28.5 25.4 39.67 26.1 41.28 34.93 11.1 8.7
1.250 31.7 28.5 42.85 29.3 44.45 34.93 11.1 8.7
1.375 34.9 28.5 49.20 29.3 44.45 42.85 11.1 8.7
1.500 38.1 31.7 49.20 32.4 47.63 36.50 11.1 8.7
1.625 41.2 34.9 57.15 35.6 50.80 40.46 11.1 11.1
1.750 44.4 38.1 58.72 38.8 53.96 44.45 11.1 11.1
1.875 47.6 41.2 63.50 42.4 60.33 44.45 12.7 11.1
2.000 50.8 44.4 66.68 45.5 63.50 44.45 12.7 11.1
2.125 53.9 47.6 71.42 48.7 66.68 52.37 12.7 12.7
2.250 57.1 50.8 72.21 51.9 69.85 44.45 12.7 12.7
2.375 60.3 53.9 76.20 55.0 76.20 52.37 14.3 12.7
2.500 63.5 57.1 79.38 58.2 79.38 44.45 14.3 12.7
2.625 66.6 60.3 82.55 61.4 82.55 52.37 14.3 12.7
2.750 69.8 63.5 85.73 64.6 85.73 52.37 14.3 12.7
2.875 73.0 66.6 88.90 67.7 85.73 52.37 15.9 12.7
3.000 76.2 69.8 92.08 70.9 88.90 52.37 15.9 12.7
3.125 79.3 73.0 95.25 74.1 95.25 52.37 15.9 14.3
3.250 82.5 76.2 98.43 77.3 98.43 52.37 15.9 14.3
3.375 85.7 79.3 101.60 80.5 101.60 52.37 19.8 14.3
3.500 88.9 82.5 104.78 83.6 104.78 52.37 19.8 14.3
3.625 92.0 85.7 107.95 86.8 107.95 52.37 19.8 14.3
3.750 95.2 88.9 111.13 90.0 111.13 52.37 19.8 14.3
3.875 98.4 92.0 114.30 93.1 114.30 52.37 19.8 14.3
4.000 101.6 95.2 117.48 96.3 117.48 52.37 19.8 14.3
