SS-1527: Eagle 1527(Sealol 1527)

Description:
SS-1527: Perfect replacement of Eagle 1527(Sealol 1527), component mechanical seals

Share this site:

  • Product Detail
  • Make an inquiry
SS-1527
Structure Description:
Equivaent to Burgmann 1527
Single spring design

Operating Limits:
Temperature:-20---180℃
Speed:15m/s

Pressure:10bar
Standard Size:18-100mm
Material:
Seal Ring:Car、Sic、Ssic、TC
Secondary seal:NBR,Viton,EPDM etc.
Spring and metal parts:304,316,HAST.C

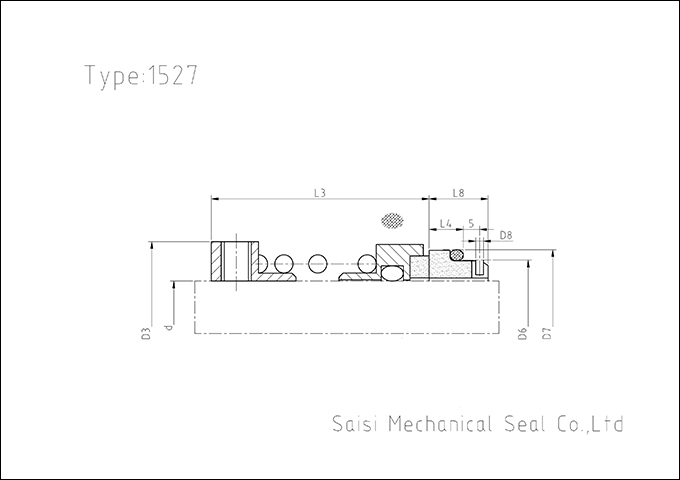

SS-1527 Dimensions(mm)
Size d D3 D6 D7 D8 L3 L4 L8
18 18 32 27 33 3 35 10 17
20 20 34 29 35 3 35.0 10.0 17.0
22 22 36 31 37 3 35.0 10.0 17.0
24 24 38 33 39 3 40.0 10.0 17.0
25 25 39 34 40 3 40.0 10.0 17.0
28 28 42 37 43 3 40.0 10.0 17.0
30 30 44 39 45 3 40.0 10.0 17.0
32 32 46 42 48 3 45.0 10.0 17.0
33 33 47 42 48 3 45.0 10.0 17.0
35 35 49 44 50 3 45.0 10.0 17.0
38 38 54 49 56 4 44.0 11.0 18.0
40 40 56 51 58 4 44.0 11.0 18.0
43 43 59 54 61 4 49.0 11.0 18.0
45 45 61 56 63 4 49.0 11.0 18.0
48 48 64 59 66 4 49.0 11.0 18.0
50 50 66 62 70 4 47.0 13.0 20.0
53 53 69 65 73 4 57.0 13.0 20.0
55 55 71 67 75 4 57.0 13.0 20.0
58 58 78 70 78 4 57.0 13.0 20.0
60 60 80 72 80 4 57.0 13.0 20.0
63 63 83 75 83 4 57.0 13.0 20.0
65 65 85 77 85 4 67.0 13.0 20.0
68 68 88 81 90 4 64.7 15.3 20.0
70 70 90 83 92 4 64.7 15.3 20.0
75 75 99 88 97 4 64.7 15.3 20.0
80 80 104 95 105 4 74.3 15.7 22.5
85 85 109 100 110 4 74.3 15.7 22.5
90 90 114 105 115 4 74.3 15.7 22.5
95 95 119 110 120 4 74.3 15.7 22.5
100 100 124 115 125 4 74.3 15.7 22.5
